British Standard Conduits
Manufactured in accodance with BS 31 / BS 4568 / BS EN 50086 Part 1 / BS EN 61386-21 where applicable.

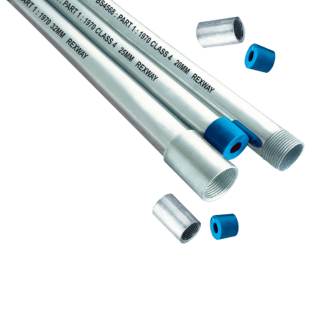

Threaded both ends. One end fitted with coupling and the other protected by thread protector.
BS 4568-1 / BS EN 50086-2-1 / BS EN 61386-21
Class 4 Finish / Heavy Protection
Hot Dipped Galvanised Inside and Outside
3.75 Meter Length
| Item Code | Outside Diameter | Small Bundle | Master Bundle |
|---|---|---|---|
| C-RX-B6020H | 20mm | 10 | 20 |
| C-RX-B6025H | 25mm | 10 | 15 |
| C-RX-B6032H | 32mm | 10 | 10 |
BS 31
Class 4 Finish / Heavy Protection
Hot Dipped Galvanised Inside and Outside
3.75 Meter Length
| Item Code | Outside Diameter | Small Bundle | Master Bundle |
|---|---|---|---|
| C-RX-B038H | 1-1/2"(38mm) | 10 | 5 |
| C-RX-B050H | 2"(50mm) | 7 | 5 |
BS 31
Hot Dipped Galvanised Steel Strip
Smooth Internal surface & low welding bead

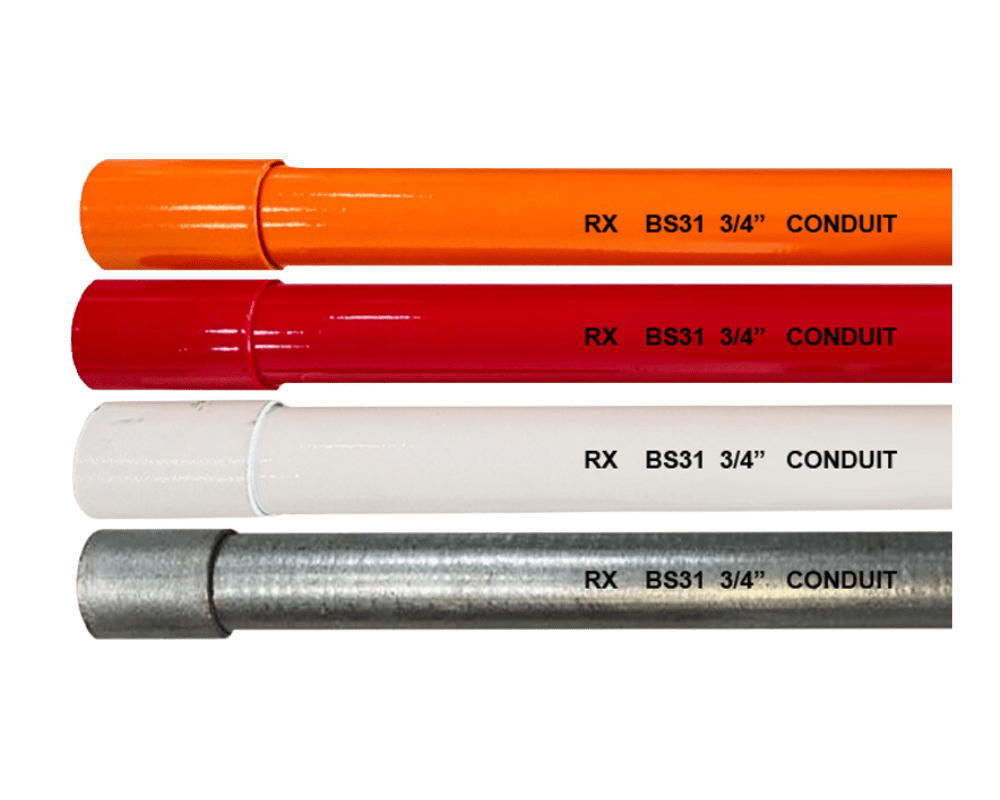

Available in Clear & Colored Finishing (Red Orange White)
3.81 Meter Length
| Item Code | Trade Size | Length |
C-D075P C-D100P |
3/4" & 1" | 3.81m |
|---|
|
C-D075R C-D100R |
|
C-D075W C-D100W |
|
C-D075J C-D100J |
