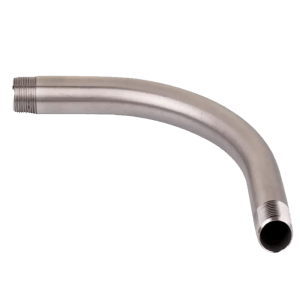

Stainless Steel Elbow
Material : Stainless Steel
Stainless Steel 304
| Item Code | Trade Size | Min Radius R | Offset C | Straight End D |
|---|---|---|---|---|
| SS304 | inch | inch | inch | inch |
| F-S4E90-050 | 1/2" | 4.00 | 6.96 | 2.50 |
| F-S4E90-075 | 3/4" | 4.50 | 7.73 | 2.50 |
| F-S4E90-100 | 1" | 5.75 | 9.36 | 3.00 |
| F-S4E90-125 | 1-1/4" | 7.25 | 11.38 | 3.25 |
| F-S4E90-150 | 1-1/2" | 8.25 | 12.76 | 3.50 |
| F-S4E90-200 | 2" | 9.50 | 15.01 | 4.25 |
| F-S4E90-250 | 2-1/2" | 10.50 | 17.11 | 5.00 |
| F-S4E90-300 | 3" | 13.00 | 20.33 | 5.50 |
| F-S4E90-350 | 3-1/2" | 15.00 | 23.38 | 6.25 |
| F-S4E90-400 | 4" | 16.00 | 25.40 | 7.00 |
| F-S4E90-500 | 5" | 24.00 | 37.86 | 11.00 |
| F-S4E90-600 | 6" | 30.00 | 45.99 | 12.50 |
Stainless Steel 316
| Item Code | Trade Size | Min Radius R | Offset C | Straight End D |
|---|---|---|---|---|
| SS316 | inch | inch | inch | inch |
| F-S6E90-050 | 1/2" | 4.00 | 6.96 | 2.50 |
| F-S6E90-075 | 3/4" | 4.50 | 7.73 | 2.50 |
| F-S6E90-100 | 1" | 5.75 | 9.36 | 3.00 |
| F-S6E90-125 | 1-1/4" | 7.25 | 11.38 | 3.25 |
| F-S6E90-150 | 1-1/2" | 8.25 | 12.76 | 3.50 |
| F-S6E90-200 | 2" | 9.50 | 15.01 | 4.25 |
| F-S6E90-250 | 2-1/2" | 10.50 | 17.11 | 5.00 |
| F-S6E90-300 | 3" | 13.00 | 20.33 | 5.50 |
| F-S6E90-350 | 3-1/2" | 15.00 | 23.38 | 6.25 |
| F-S6E90-400 | 4" | 16.00 | 25.40 | 7.00 |
| F-S6E90-500 | 5" | 24.00 | 37.86 | 11.00 |
| F-S6E90-600 | 6" | 30.00 | 45.99 | 12.50 |
